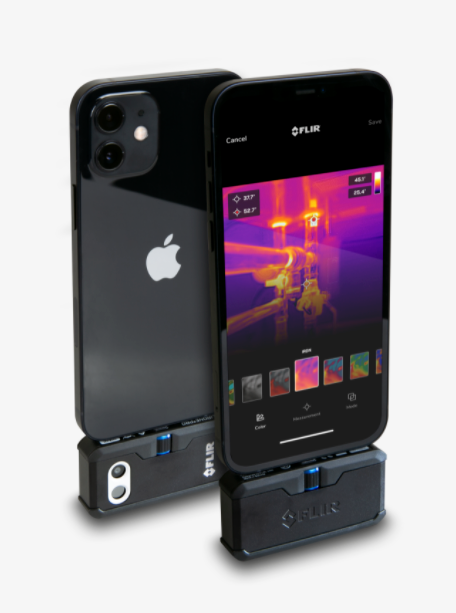

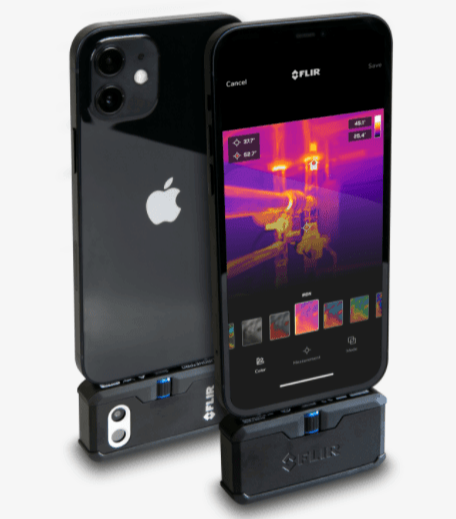

FLIR ONE Pro Thermal Camera
Regular price
$632.50
Sale
The FLIR ONE Pro helps you find invisible problems faster than ever, whether you're inspecting electrical panels, troubleshooting mechanical systems, looking for HVAC problems, or finding water damage. This FLIR ONE Pro-Series camera offers 4x the native resolution of the FLIR ONE Pro LT, for sharper image clarity that's further enhanced by the revolutionary FLIR VividIR™. Measure temperatures more than 3x higher than any FLIR ONE model—up to 400°C (752°F)—with a sensitivity that detects temperature differences down to 70 mK. Packed with powerful measurement tools, the FLIR ONE Pro will work as hard as you do.
SPECIFICATIONS
- Thermal Resolution
- 160 × 120
- Battery life
- Approximately 1 hr
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Phone
- iOS
- Accuracy
- ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
- Operating Temperature
- 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
IMAGING & OPTICAL
- Adjustable MSX distance
- 0.3 m — Infinity
- Focus
- Fixed 15 cm — Infinity
- Frame Rate
- 8.7 Hz
- General Description
- Thermal and Visual Cameras with MSX
- HFOV/VFOV
- 50° ±1° / 43° ±1°
- Palette
- Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
- Shutter
- Automatic/Manual
- Thermal Resolution
- 160 × 120
- Thermal Sensor
- Pixel size 12 µm, 8 — 14 µm spectral range
- Video and Still Image Display/Capture
- Saved as 1440 × 1080
- Visual Resolution
- 1440 × 1080
POWER
- Battery charge time
- 40 min
- Battery life
- Approximately 1 hr
MEASUREMENT & ANALYSIS
- Accuracy
- ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
GENERAL
- Battery charge monitor
- 0 — 100%
- Dimensions (H x W x D)
- 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in)
- Phone
- iOS
- Weight
- 36.5 g
ENVIRONMENTAL & CERTIFICATIONS
- Certifications
- MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
- Emissivity Settings
- Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
- Non-Operating Temperature
- -20°C — 60°C (-4°F — 140°F)
- Operating Temperature
- 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
COMMUNICATION & DATA STORAGE
- Capture modes
- Video, Still image
- Charging
- Female USB-C (5V/1A)
- File Formats
- Radiometric JPG, MPEG-4 (file format MOV)
- Video
- Male Lightning
