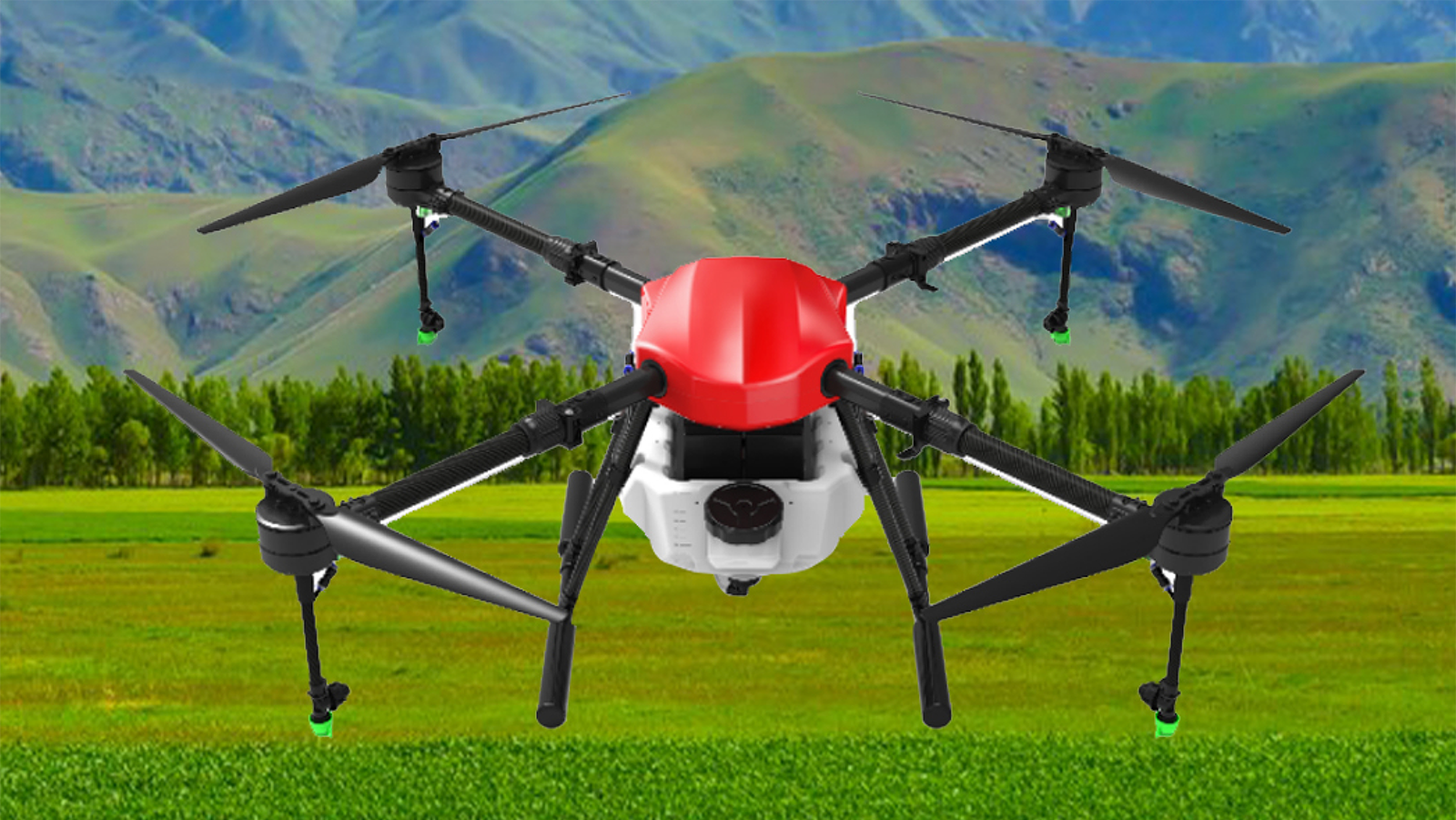

XLP-410 PLANT PROTECTION DRONE

Configuration

• Product Name: XLP-410 | Medicine Box Volume: 10 L
• Wheelbase: 1300 mm | Maximum Takeoff Weight: 24 kg
• Product Weight: 11.27 kg | Spray Width: 3–5 m
• Folding Size: 650 × 650 × 600 mm | Product Size: 1300 × 1300 × 600 mm
• Flight Distance: 3 km | Flight Time: 15–20 min
• Working Voltage: 12S | Battery: 12S 16,000 mAh
• Power System: TUOHANG T8 | Charging Time: Not specified
• Flight Control System: JIYI K++V2 | Efficiency: 1.5–2 mu/min
• Spray Flow Rate: 5 L/min | Maximum Pressure: 0.8 MPa

Functions

1. Ground Stations: Android mobile and PC ground station with full voice broadcasting.
2. Autonomous Operations: Route planning, AB point operations, and one-click takeoff/landing.
3. Safety Features: Intermittent spraying, no medication/low battery return.
4. Dosage Monitoring: Automatic breakpoint recording for no-medication return.
5. Battery Monitoring: Automatic low-battery return with breakpoint recording.
6. Advanced Features: Fence, log storage, road locking, and no-fly zone functions.
7. Vibration Protection: Includes star loss and medication interruption protections.
8. Motor Diagnostics: Sequence and direction detection for enhanced safety.

Efficiency

• Daily Workload: 200–300 acres
