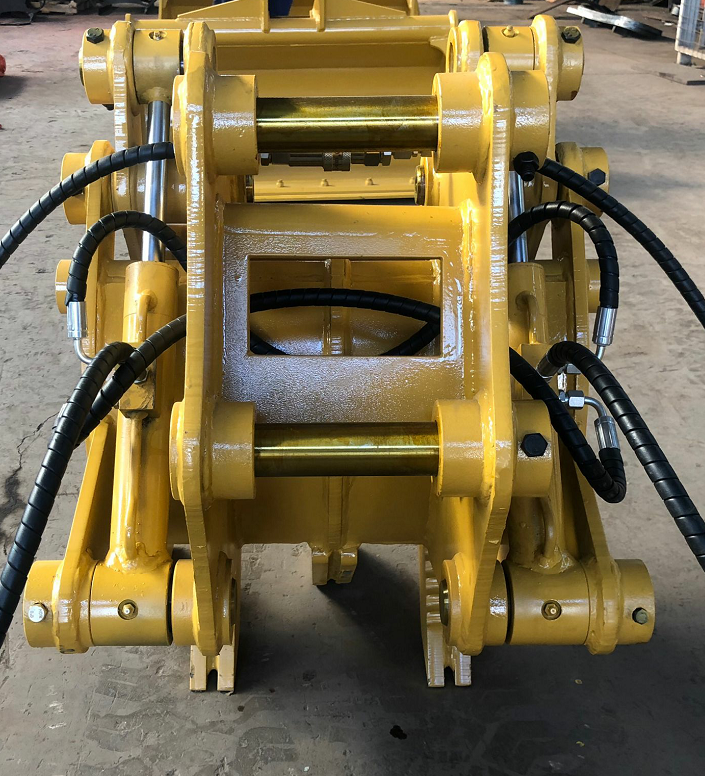

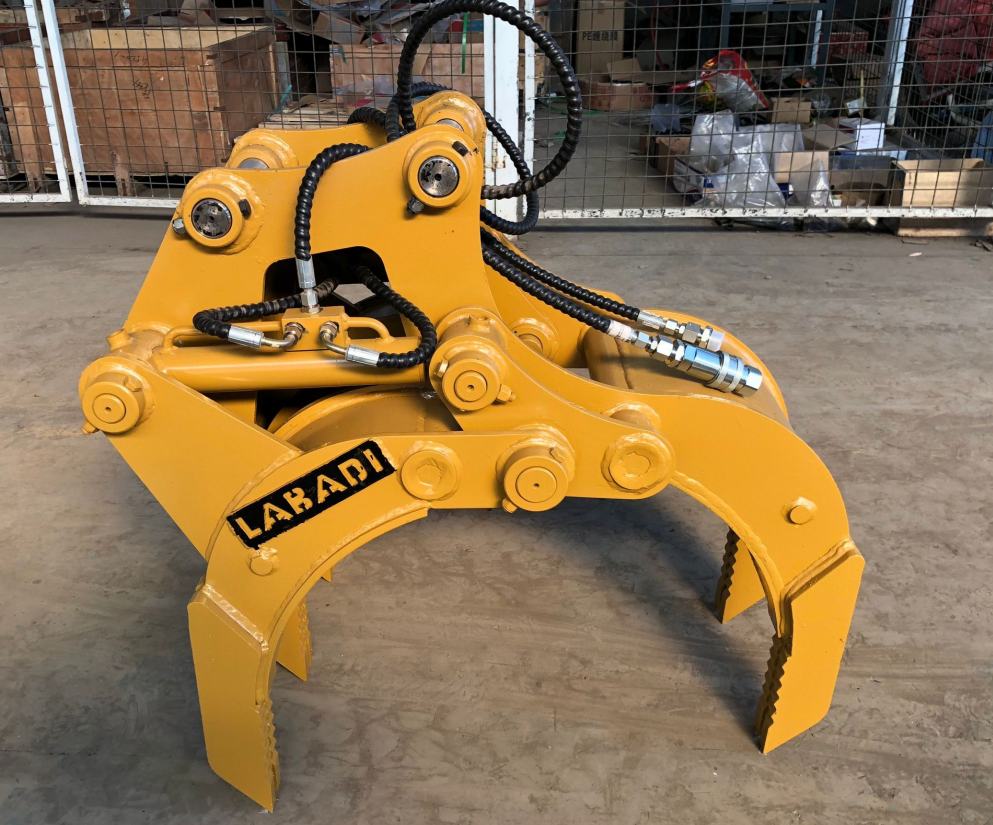

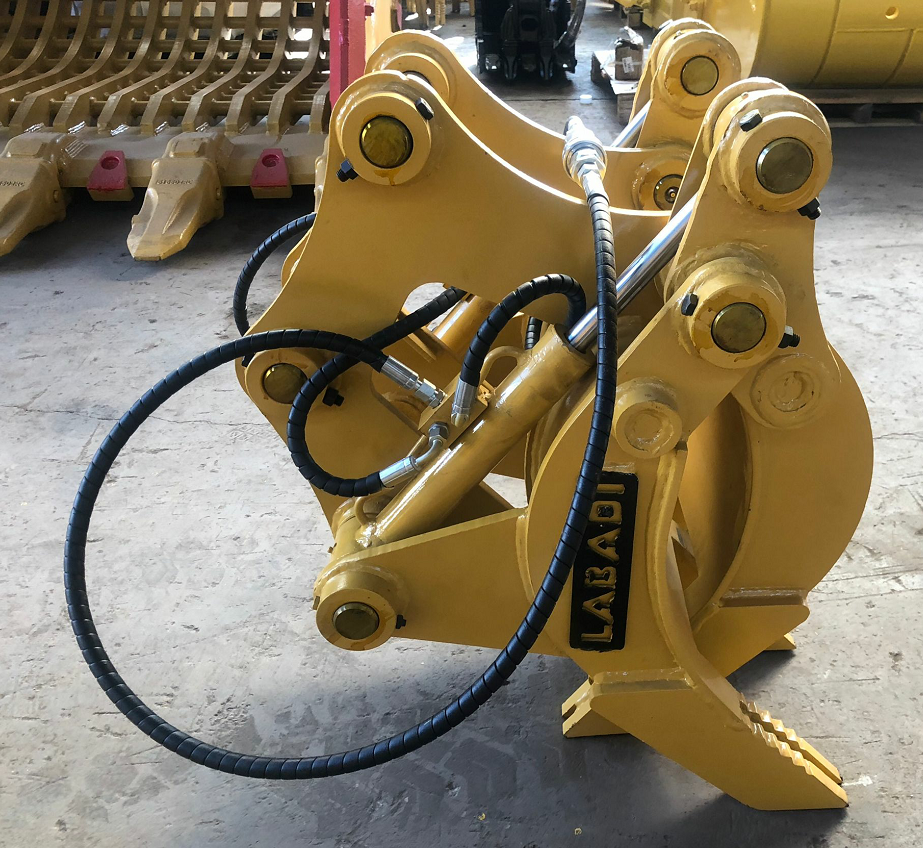

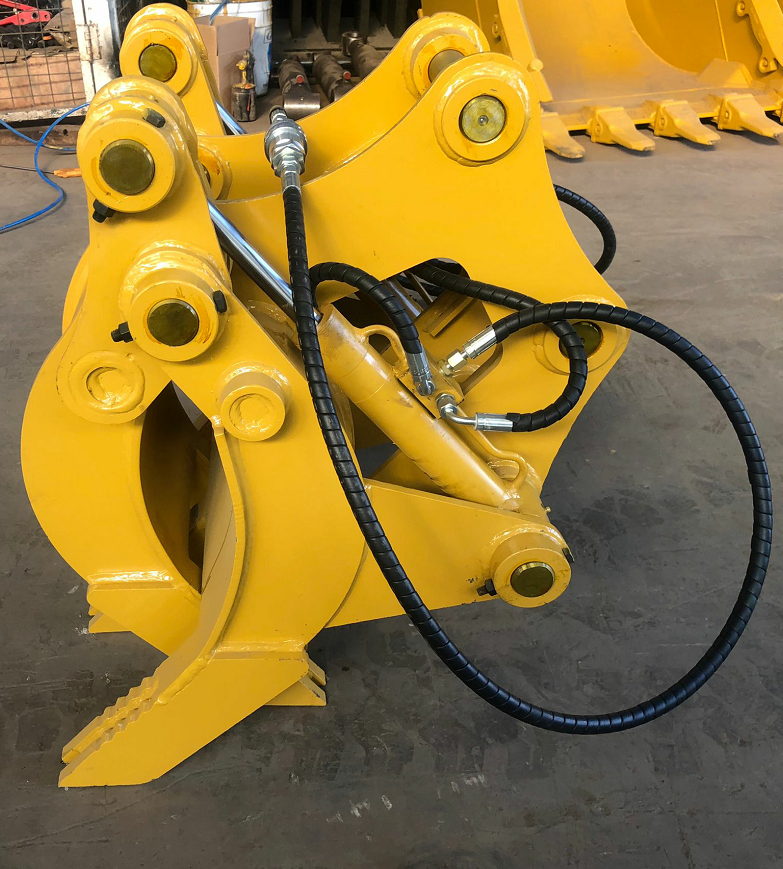

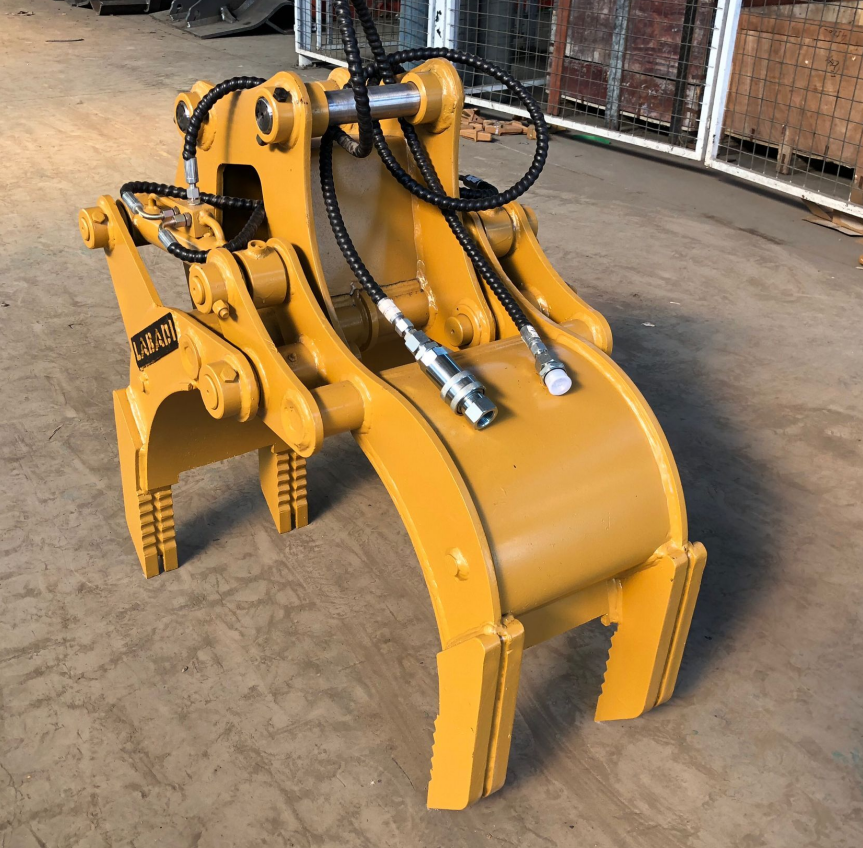

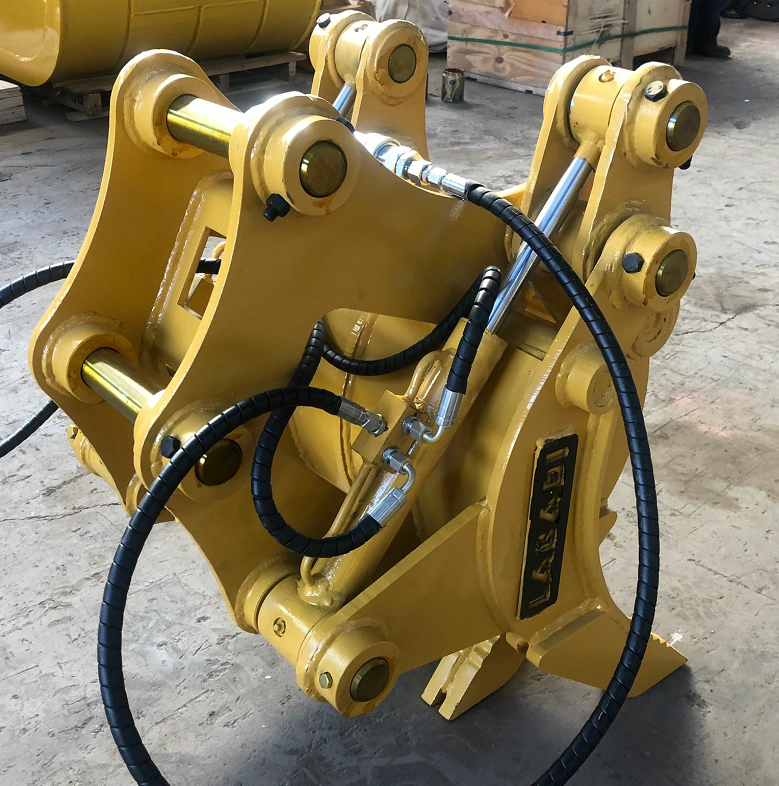

The Hydraulic Grapple has a large jaw opening that allows it to pick up large materials, and the hydraulic design of the grapple give it better grip, so it can grab large and uneven loads, increasing productivity and efficiency in loading cycles.
The Standard Hydraulic Grapple has the ability to handle large loads, making it ideal for site cleanup and material handling, constructed with high quality materials such as Q345B, NM360/400 and HARDOX 450/500 to ensure durability.
SPECIFICATIONS
Excavator Size: 4 tonne, 5 tonne, 6 tonne & 7 tonne
Max Opening: 730mm

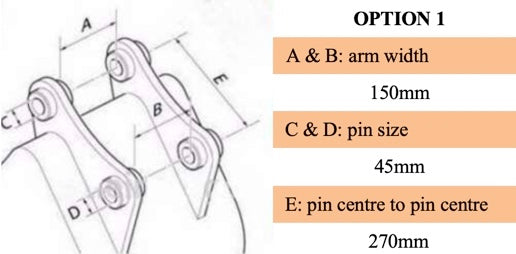

Pin Size: 45mm
Arm Width: 150mm
Pin Centre to Pin Centre: 270mm
Weight: 276kg
Type: Box Type
Opening Depth: 400mm
Claw Length: 560mm
Working Pressure: 210bar
Cylinder Diametre: 40mm
